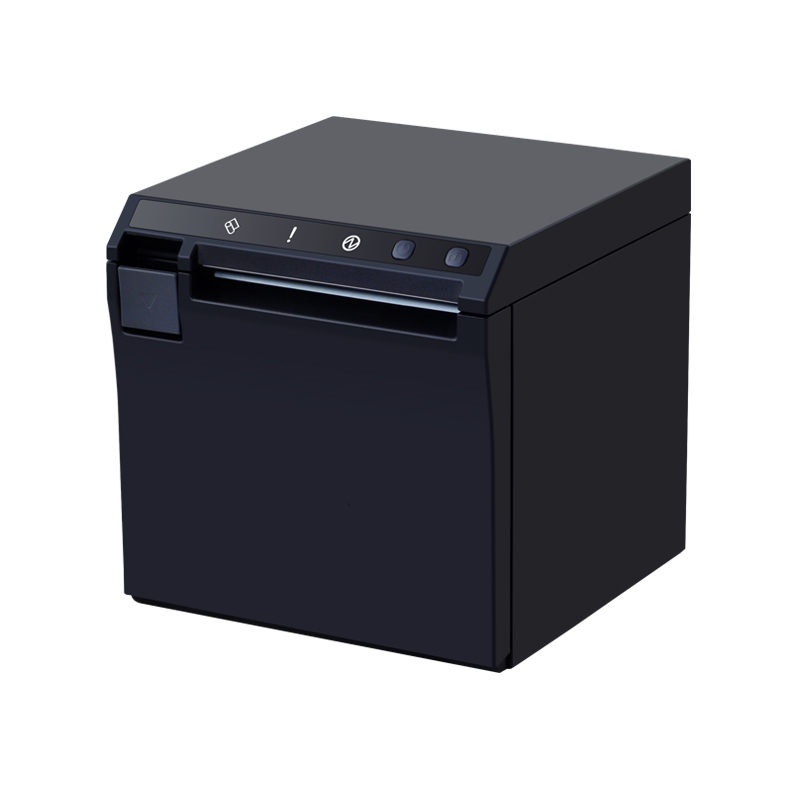

● 300mm/sec low noise, high speed printing.
● Low power consumption and low operating cost.
● 83mm large capacity paper bin.

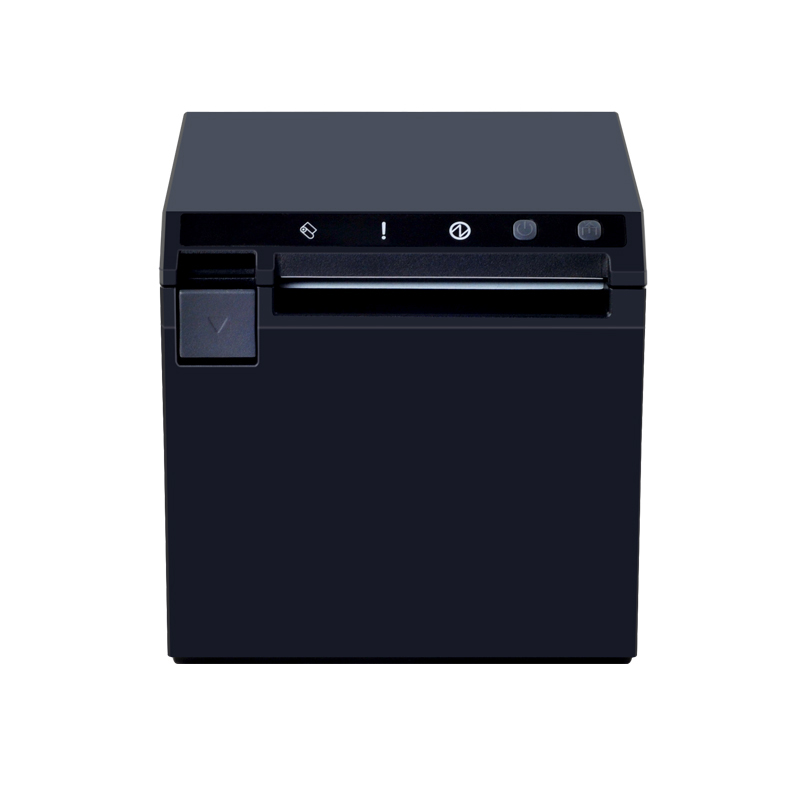

● Visual LED indicator lights, real-time prompts for power, error,
and paper shortage.
● Support free adjustment of 58, 80, 83mm printing paper (adjusted
by partition)

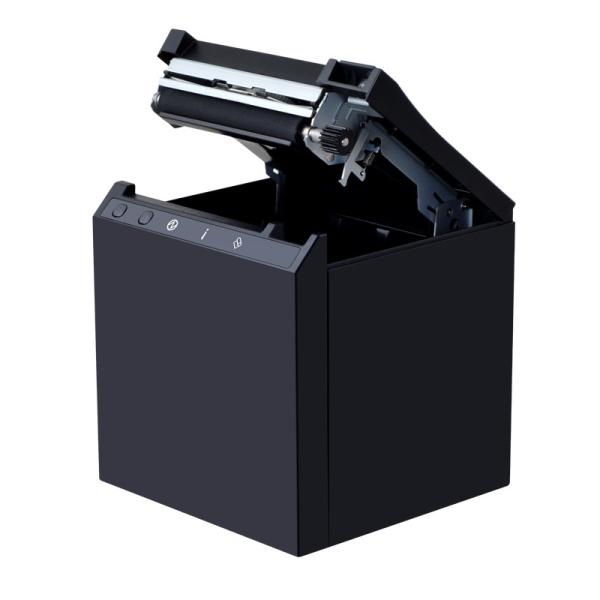

● Flexible change of the “Top Out” and “Front Out” modes.
● Simplified/traditional can be freely converted by instructions
| print | printing method | Direct line thermal |
| Print width | 48-80±0.5mm (adjustable by command) |
| Dot density | 576 dots/line or 512 dots/line |
| printing speed | 300mm/sec |

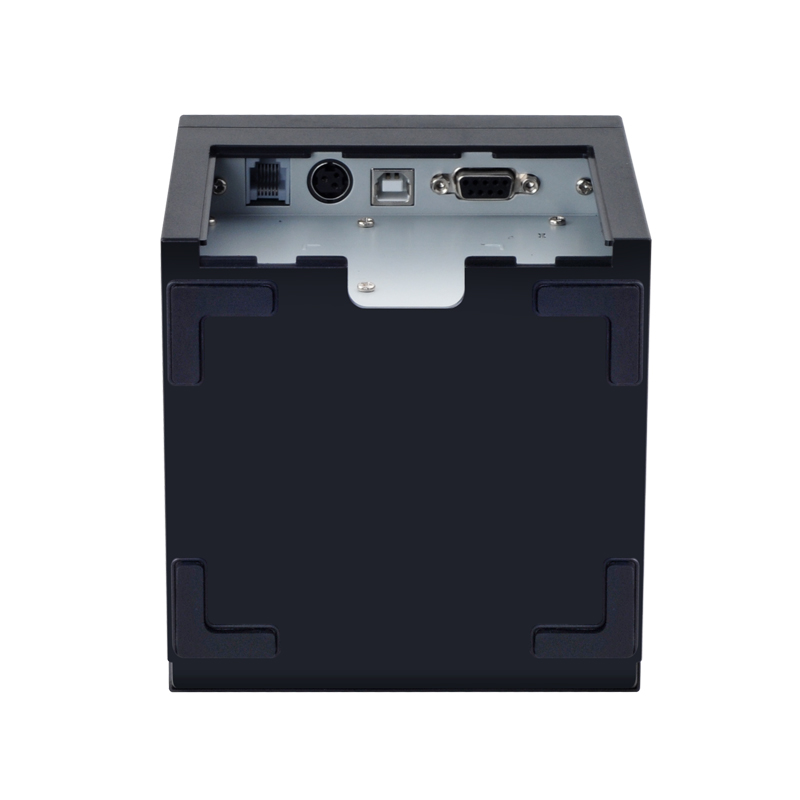

| Interface Type | USB+network port, USB+serial port, USB+serial port+BT, USB+serial
port+WIFI |
| Paper roll width | Support 58/80/83±0.5mm paper roll |
| Line spacing | 3.75mm (the line spacing can be adjusted by command) |
| Number of columns | 80mm paper: Font A-42 columns or 48 columns/Font B-56 columns or
64 columns / Simplified, Traditional-21 columns or 24 columns |
| Character size | ANK character, Font A: 1.5×3.0mm (12×24 dots) |
| Font B: 1.1×2.1mm (9×17 dots) |
| Simplified/Traditional Chinese: 3.0×3.0mm (24×24 dots) |
| Barcode character | Extended character table | PC347 (Standard Europe), Katakana, |
| PC850 (Multilingual), PC860 (Portuguese), |
| PC863 (Canadian-French), PC865 (Nordic), |
| West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866
(Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151
(1251) |
| One-dimensional code | UPC-A/UPC-E/JAN13 (EAN13)/JAN8 (EAN8)/
CODE39/ITF/CODABAR/CODE93/CODE128 |
| QR code | QRCODE/PDF417 |
| Cutter | Automatic cutter | Half cut |
| buffer | Input buffer | 2048k bytes |
| NV Flash | 256k bytes |
| power supply | Power Adapter | Input: AC 100-240V, 50～60Hz |
| power supply | Output: DC 24V/2.5A |
| Cash drawer output | DC 24V/1A |
| Physical characteristics | weight | 1.115 kg |
| physical dimension | 133×126×130mm (D×W×H) |
| Environmental requirements | working environment | Temperature: 0～45℃, Humidity: 10～80% |
| Storage environment | Temperature: -10～60℃, Humidity: 10～90% (no condensation) |
| life | Cutter life | 2 million times |
| Print head life | 150 km |
CP-330H 80mm Direct Thermal Printer High Speed Bluetooth Wifi Mini
Receipt Printer with Voice Alarm for All POS System
Features:
1. Compact design, fashionable appearance
2. Support paper margin and line spacing adjustment
3. 250mm/s high printing speed
4. Support voice alarm and NFC function
5. Switching compatibility for paper out front and paper out upward
Application Senario:
Transportation&Logistics: Shipping labels
On-line SOHO business: Postage labels
Manufacturing: Light-industrial product labeling
Office&Home: Files management labeling
Retails&Stores: Price labels
Supermarkets: Shelf tags
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
POS Terminal,Touch Screen Monitor,Thermal Printer,Barcode
Scanner,Cash Drawer
3. why should you buy from us not from other suppliers?
We have experience in the development car electronics and all in
one pos products. Our products range incluseds POS, TOUCH/HDMI
MONITOR/,CAR MONITOR, HUD, Headrest PC. For the small quantity
project, we are avialble for the fast feedback and customerized.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western
Union,Cash,Escrow;
Language Spoken:English,Chinese
